Database Schema ​

The FluentBooking database is designed for high performance, maintaining a clean separation between core scheduling data, host availability, and extensibility via metadata.

Core Entity Relationships ​

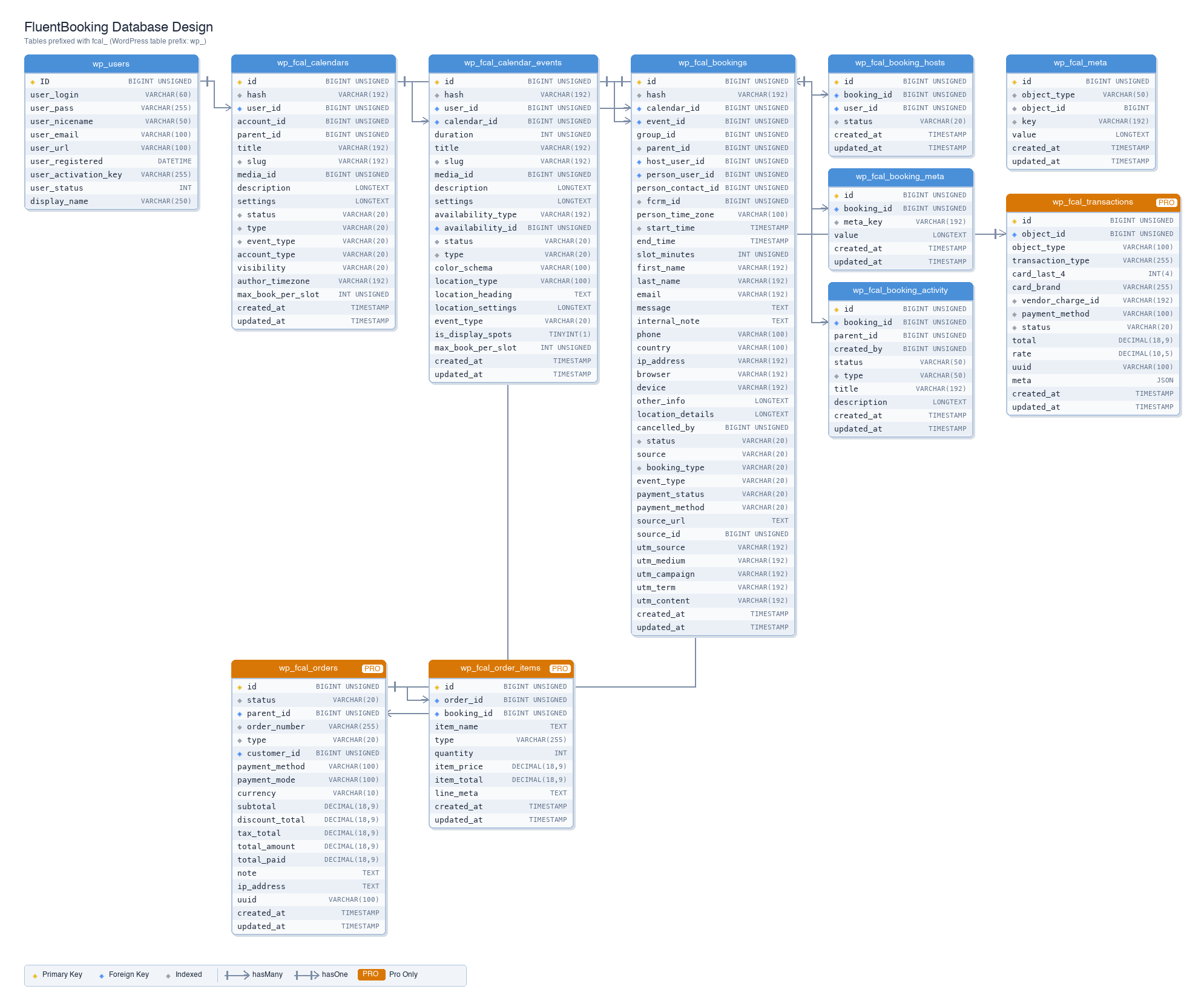

The following diagram illustrates the primary relationships between the core entity tables in FluentBooking.

FluentBooking Database Schema

Schema Overview ​

The FluentBooking schema is built around these core concepts:

  • Calendars & Events: Top-level containers for scheduling rules and specific appointment types.
  • Bookings: The central ledger for all scheduled appointments, including customer data and status.
  • Availability & Rules: Stored in a polymorphic meta system to allow for both global and event-specific overrides.
  • Multi-Host Management: Pivot-based assignment for team scheduling, round-robin, and collective events.
  • Activity & Auditing: Detailed logs for every state change or notification event related to a booking.
  • Pro Extensions: Additional tables for Orders and Transactions to handle paid scheduling.

Key Design Principles ​

  1. JSON Configuration: Complex settings for events and calendars are stored as JSON for maximum flexibility without schema changes.
  2. Polymorphic Meta: We use a unified fcal_meta table for various object types (Calendars, Events) to keep the core schema lean.
  3. Audit Trail: Every significant booking event is logged in fcal_booking_activity for debugging and customer support.
  4. Performance Indexing: Strategic composite indexes are placed on time-based columns (start_time, end_time) and foreign keys for rapid availability lookups.
  5. UUID / Hash Security: Public identifiers are used for booking hashes and calendar slugs to prevent ID enumeration.

Database Tables ​

All tables are prefixed with fcal_ (or your custom WordPress prefix).

fcal_calendars ​

The master table for calendars.

  • id: Primary key
  • hash: Unique public identifier
  • user_id: Owner's WP User ID
  • account_id: Associated integration account ID
  • parent_id: Parent calendar ID (teams)
  • title: Calendar name
  • slug: Public URL slug
  • media_id: Featured image ID
  • description: Calendar description
  • settings: (Serialized) Additional configurations
  • status: active, inactive or expired
  • type: simple (individual), team, or event
  • event_type: Primary event category
  • account_type: free / pro
  • visibility: public / admin
  • author_timezone: Host's default timezone
  • max_book_per_slot: Default guests limit per calendar
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_calendar_events ​

Represents bookable event types (Slots).

  • id: Primary key
  • hash: Unique public identifier
  • user_id: Creator's WP User ID
  • calendar_id: Parent calendar ID
  • duration: Length of event in minutes
  • title: Event name
  • slug: Event public slug
  • media_id: Featured image ID
  • description: Event description
  • settings: (Serialized) Additional configurations stored. Examples include buffer times, available date ranges, date_overrides, booking limits, etc.
  • availability_type: existing_schedule / custom
  • availability_id: ID for existing schedule availability
  • status: active / inactive / draft / expired
  • type: free / paid
  • color_schema: Display color
  • location_type: Primary location type
  • location_heading: Custom label for location
  • location_settings: (Serialized) Multi-location config
  • event_type: single, group, single_event, group_event, round_robin, collective
  • is_display_spots: Show/hide remaining spots of group event
  • max_book_per_slot: Max guests limit of group event
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_bookings ​

Stores all appointment records.

  • id: Primary key
  • hash: Public meeting identifier
  • calendar_id: Related calendar ID
  • event_id: Related event ID
  • group_id: Group ID for multi-seat bookings
  • parent_id: Parent ID for repeating bookings
  • host_user_id: Assigned primary host
  • person_user_id: Attendee WP User ID (if logged in)
  • person_contact_id: CRM contact ID
  • fcrm_id: FluentCRM subscriber ID
  • person_time_zone: Attendee's timezone
  • start_time: UTC start
  • end_time: UTC end
  • slot_minutes: Booking duration
  • first_name, last_name, email, phone: Attendee info
  • message: Meeting notes for user
  • internal_note: Internal notes for admin
  • country: Attendee's country
  • ip_address: Attendee's IP address
  • browser: Attendee's browser info
  • device: Attendee's device info
  • other_info: (Serialized) Custom form field data
  • location_details: (Serialized) Selected booking location info
  • cancelled_by: WP User ID who cancelled the booking
  • status: scheduled, pending, cancelled, completed, rejected, rescheduled, reserved, no_show
  • source: web / admin / integration
  • booking_type: scheduling, event
  • event_type: single, group, round_robin, collective, etc.
  • payment_status: pending, paid, partially-paid, partially-refunded
  • payment_method: stripe, paypal, offline, etc.
  • source_url: URL of the page where the booking was made
  • source_id: ID of the source (form, post, etc.)
  • utm_source, utm_medium, utm_campaign, utm_term, utm_content: Tracking params
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_booking_meta ​

Polymorphic key-value storage for specific booking data (e.g., custom fields).

  • id: Primary key
  • booking_id: Foreign key
  • meta_key: Meta key
  • value: (Serialized) Meta value
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_booking_activity ​

Detailed audit log for all booking actions.

  • id: Primary key
  • booking_id: Related booking
  • parent_id: Parent activity ID (nested)
  • created_by: WP User ID of actor
  • status: Status of action (open, failed, success, closed)
  • type: info, success, error, note, email_log, etc.
  • title, description: Log details
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_booking_hosts ​

Pivot table linking multiple hosts to a single booking.

  • id: Primary key
  • booking_id: Related booking
  • user_id: Assigned host's WP User ID
  • status: confirmed, pending, declined
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_meta ​

Polymorphic storage for various objects.

  • id: Primary key
  • object_type: Calendar, calendar_event, availability, user_meta, integration, etc.
  • object_id: Related ID
  • key: Meta key
  • value: (Serialized) Meta value
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_orders Pro ​

Financial orders table for paid bookings.

  • id: BIGINT UNSIGNED, Primary key, Auto-increment
  • status: VARCHAR(20), Order status — draft, pending, completed, failed, refunded, cancelled
  • parent_id: BIGINT UNSIGNED, Related booking ID
  • order_number: VARCHAR(255), Order display/reference number
  • type: VARCHAR(20), Order type — sale, refund, subscription (default 'sale')
  • customer_id: BIGINT UNSIGNED, Related customer WP User ID
  • payment_method: VARCHAR(100), Payment gateway key (e.g., stripe, paypal, offline)
  • payment_mode: VARCHAR(100), Payment environment — test / live
  • payment_method_type: VARCHAR(100), Further method details (e.g., card, bank_transfer)
  • payment_method_title: VARCHAR(100), Human-readable payment method label
  • currency: VARCHAR(10), ISO currency code
  • subtotal: DECIMAL(18,9), Order subtotal before discounts/tax
  • discount_tax: DECIMAL(18,9), Discount tax amount
  • discount_total: DECIMAL(18,9), Discount pre-tax
  • shipping_tax: DECIMAL(18,9), Shipping tax
  • shipping_total: DECIMAL(18,9), Shipping cost
  • tax_total: DECIMAL(18,9), Total tax amount
  • total_amount: DECIMAL(18,9), Final order total (after all fees/discounts)
  • total_paid: DECIMAL(18,9), Amount paid towards this order
  • rate: DECIMAL(18,9), Conversion rate if multi-currency (default 1)
  • note: TEXT, Public order note
  • ip_address: TEXT, Payer IP address
  • completed_at: DATETIME, When marked completed (nullable)
  • refunded_at: DATETIME, When refunded (nullable)
  • uuid: VARCHAR(100), Unique identifier (for external integrations)
  • created_at: TIMESTAMP, Created at
  • updated_at: TIMESTAMP, Last updated at

Indexes:

  • type (order type)
  • order_number (191 length), for quick lookup
  • customer_id (customer reference)

fcal_order_items Pro ​

Detailed line items for financial orders.

  • id: Primary key
  • order_id: Parent order ID
  • booking_id: Associated booking ID
  • item_name: Display title
  • type: single, discount, tax
  • quantity, item_price, item_total: Financial data
  • rate: Currency conversion rate
  • line_meta: (Serialized) Additional item metadata
  • created_at: Record creation timestamp
  • updated_at: Record last update timestamp

fcal_transactions Pro ​

Gateway-specific transaction logs.

  • id: BIGINT(20) UNSIGNED, Primary key, Auto-increment
  • object_id: BIGINT UNSIGNED, Related order ID (not null, default 0)
  • object_type: VARCHAR(100), Object type (not null, default '')
  • transaction_type: VARCHAR(255), Transaction type — one_time, subscription, refund (default 'one_time')
  • subscription_id: INT(11), Related subscription ID (nullable)
  • card_last_4: INT(4), Card last 4 digits (nullable)
  • card_brand: VARCHAR(255), Card brand (nullable)
  • vendor_charge_id: VARCHAR(192), Gateway reference ID (not null, default '')
  • payment_method: VARCHAR(100), Payment gateway/method (not null, default '')
  • payment_method_type: VARCHAR(100), Further payment method details (not null, default '')
  • status: VARCHAR(20), Payment status — succeeded, failed, pending, refunded (not null, default '')
  • total: DECIMAL(18,9), Total transaction amount (not null, default 0.000000000)
  • rate: DECIMAL(10,5), Currency conversion rate (not null, default 1.00000)
  • uuid: VARCHAR(100), Unique identifier (not null, default '')
  • meta: JSON, Additional metadata (nullable)
  • created_at: TIMESTAMP, Created at (nullable)
  • updated_at: TIMESTAMP, Last updated at (nullable)

Indexes:

  • vendor_charge_id (first 64 chars), for gateway lookups
  • payment_method
  • status
  • object_id
